CAST IRON
Y TYPE STRAINER FLANGED
Product Description

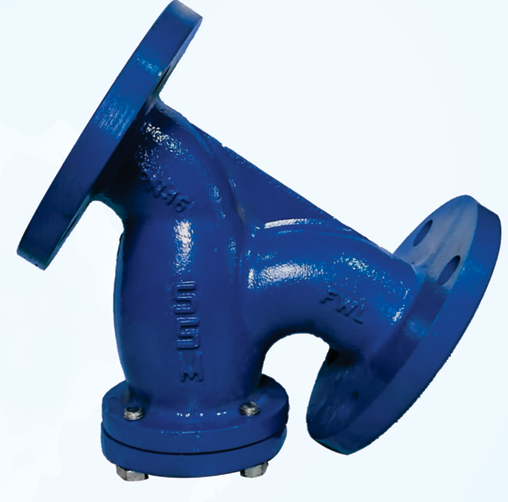

Product: SSM C.I.Y Type Strainer
Type of Pattern : Y Type
Pressure Rating: PN 1.6
Body Material Cum Standard : Cast Iron IS:210 Gr.FG200
Description : Bolted Cover
Screen : SS AISI-304 having 1.2 mm perforation
End Details: Flanges as per BS 10 Table F Undrilled
Testing and Certification
Body Test Pressure: 24 kg/cm2 Hyd
Working Test Pressure: 16 kg/cm2 Hyd
Our Works' Test Certficates is furnished with every supply
Applications
Water

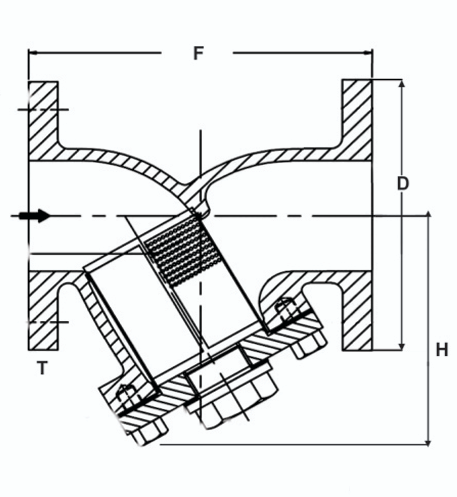

Diagram
Material of Construction
| Component | Material | Specifications |
|---|---|---|
| Body, Cover | Cast Iron | IS:210 Gr.FG200 |
| Screen | Stainless Steel | AISI-304 |
| Gasket | Compressed Asbesotos Fiber | - |
| Drain Plug | Stainless Steel | AISI-410 |
| Studs and Nuts | M.S. | - |
Dimensions (in mm)
| Size | F | D | T | H(approx) |
|---|---|---|---|---|
| 1½ | 185±2 | 140 | 15 | 135 |
| 2 | 205±2 | 158 | 16 | 135 |
| 2½ | 235±2 | 184 | 16 | 167 |
| 3 | 255±2 | 203 | 22 | 187 |
| 4 | 295±2 | 228 | 22 | 224 |
| 5 | 350±2 | 266 | 22 | 253 |
| 6 | 385±2 | 285 | 24 | 293 |
| 8 | 480±2 | 370 | 25 | 355 |
