CAST IRON
BUTTERFLY VALVE
WAFER TYPE (ISI MARKED) DISC SS 304/316
Product Description

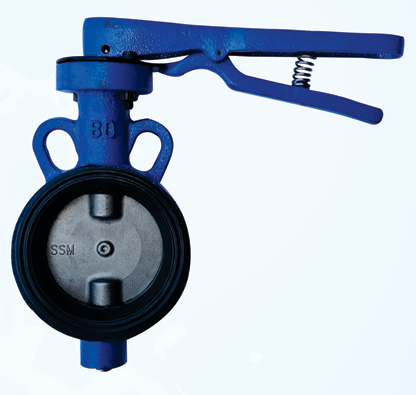

Product: SSM cast Iron Butterfly Valve
Type of Pattern: Short Pattern
Product Standard: IS : 13095
Pressure / Class / Rating: PN 1.6
Body Material Cum Standard : Cast Iron IS:210 Gr. FG200
Description: Water Type
Type of Seat: Nitrile / EPDM Lining
Type of Disc: SS AISI-410
Trim: SS AISI-410
End Details: Suitable insertion between flanges as per BS
10 table D/E ANSI B
1.6 CL-125
Testing and Certification
Ratings: PN 1.6
Body Test Pressure: 300 Psig Hyd
Seat Test Pressure: 200 Psig Hyd
Our Works' Test Certficates is furnished with every supply
Applications
Water

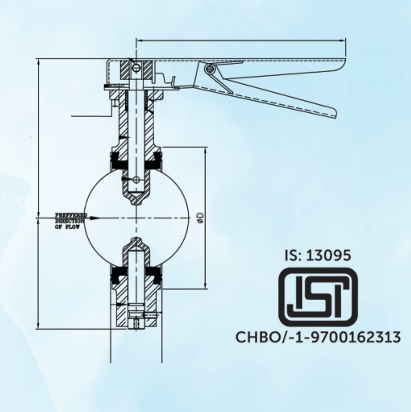

Diagram
Material of Construction
| Component | Material | Specifications |
|---|---|---|
| Body | Cast Iron | IS:210 Gr.FG200 |
| Disc | Stainless Steel | ASTMA 351 Gr.Cf8(304/316) |
| Shaft | Stainless Steel | AISI-410/ Is:6603: 12cr12 |
| Seat | Rubber | Nitrile / EPDM Lining |
| Gear | M.S. | ------ |
| Lever | S.G. | ------ |
Dimensions (in mm)
| Nominal Size | Nominal Size(Inches) | L | H | H1 (approx.) | L/L (approx.) |
|---|---|---|---|---|---|
| 40 | 1.1/2 | 33 | 58 | 94 | 170 |
| 50 | 2 | 43 | 64 | 118 | 170 |
| 65 | 2.1/2 | 46 | 70 | 120 | 214 |
| 80 | 3 | 46 | 80 | 130 | 214 |
| 100 | 4 | 52 | 98 | 150 | 214 |
| 125 | 5 | 56 | 116 | 176 | 300 |
| 150 | 6 | 56 | 129 | 196 | 300 |
| 200 | 8 | 63 | 170 | 240 | GEAR |
| 250 | 10 | 68 | 200 | 280 | GEAR |
| 300 | 12 | 78 | 280 | 325 | GEAR |
